RC Submarine: Hull, sail and planes

The sub is based on the Dumas Akula kit, but I am only planning to using 4 items from the kit, as the rest is not scale true or are of a low quality. The 4 parts are:

  • Upper hull
  • Lower hull
  • Sail
  • Radar dome

The radar dome was however missing from the kit together with at few other items. Dumas was however kind enough to send the missing items.

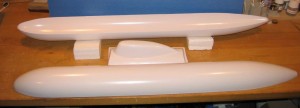

As can seen from the photo, the hulls are very plain - no scribing at all, no marks for the flooding holes etc. All that must be added by you self. The tail of the sub is also too short, so I have planed to extend it 4 cm.

Hulls and sail

Hull

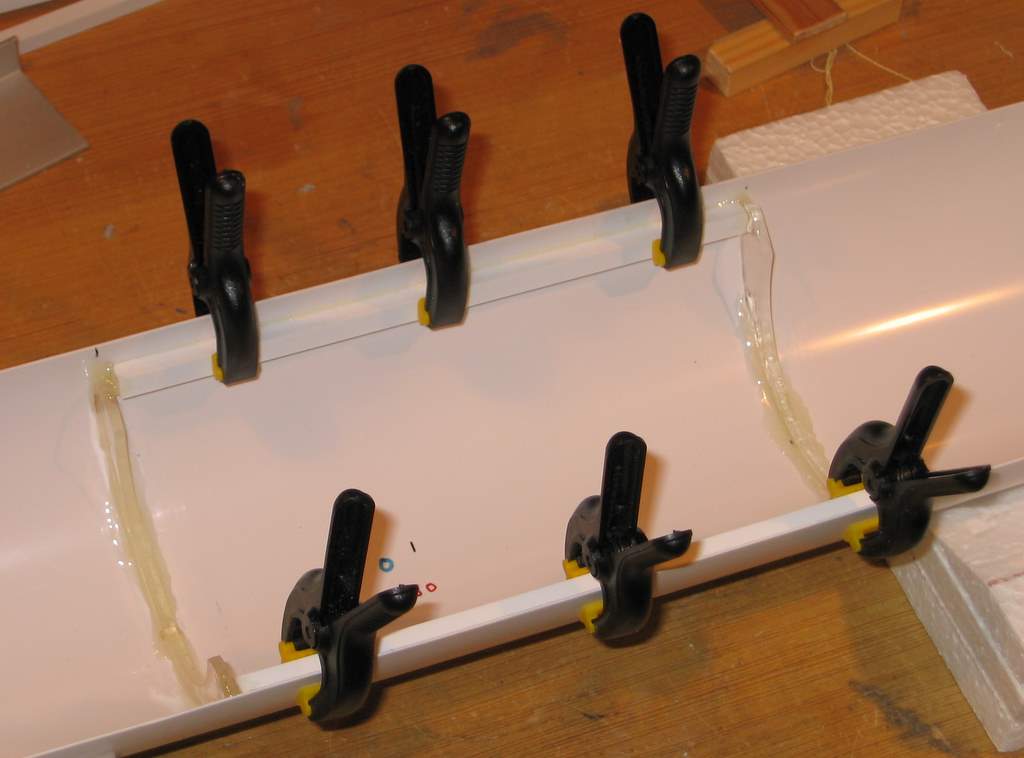

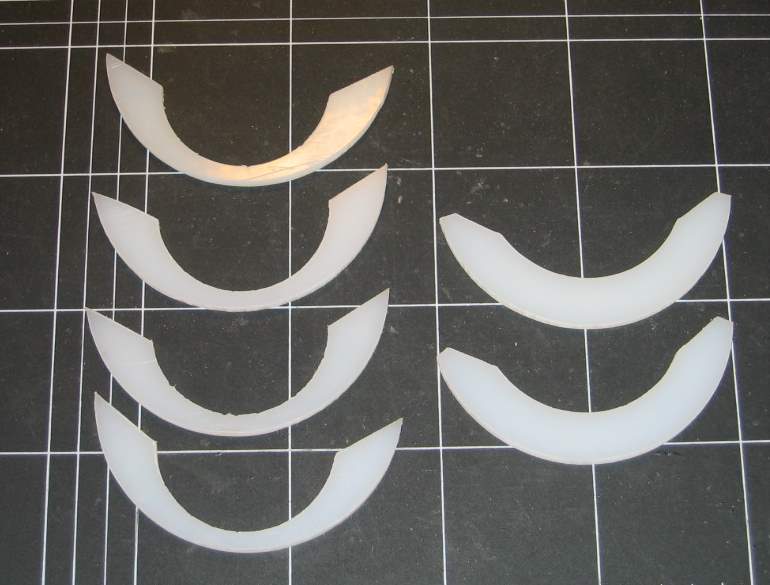

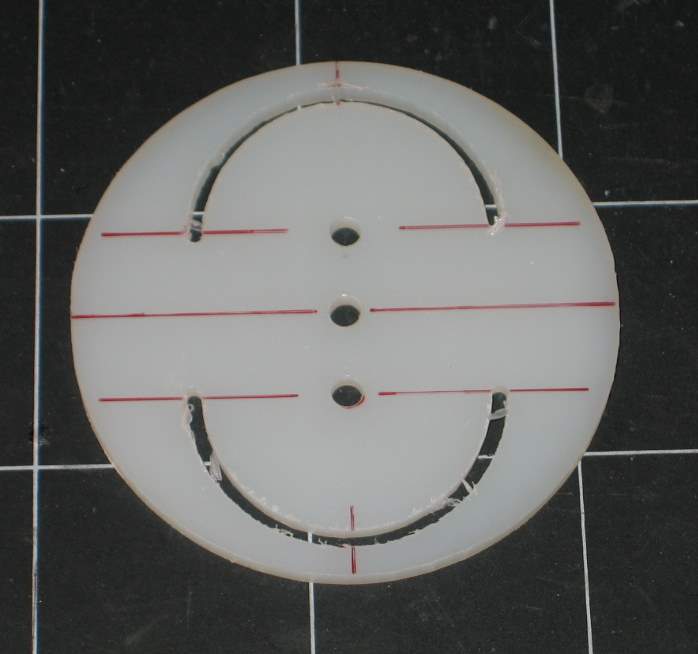

The hull is quite elastic and therefore needs some re-enforcement. At the same time I need some way to secure the WTC in the hull. For that purpose I have made some insert that will solve both needs. (More re-enforcement is however needed). They are made from 5mm acrylic sheet which is milled to shape as showed in the picture.

Hull re-enforcement Hull re-enforcement

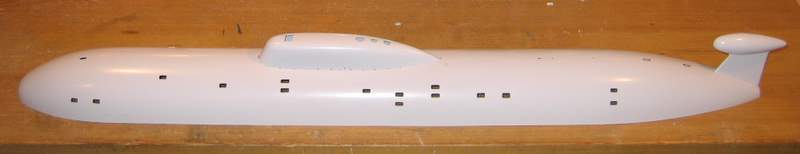

Top hull with most of the water holes, sail and radar pod.

Top hull

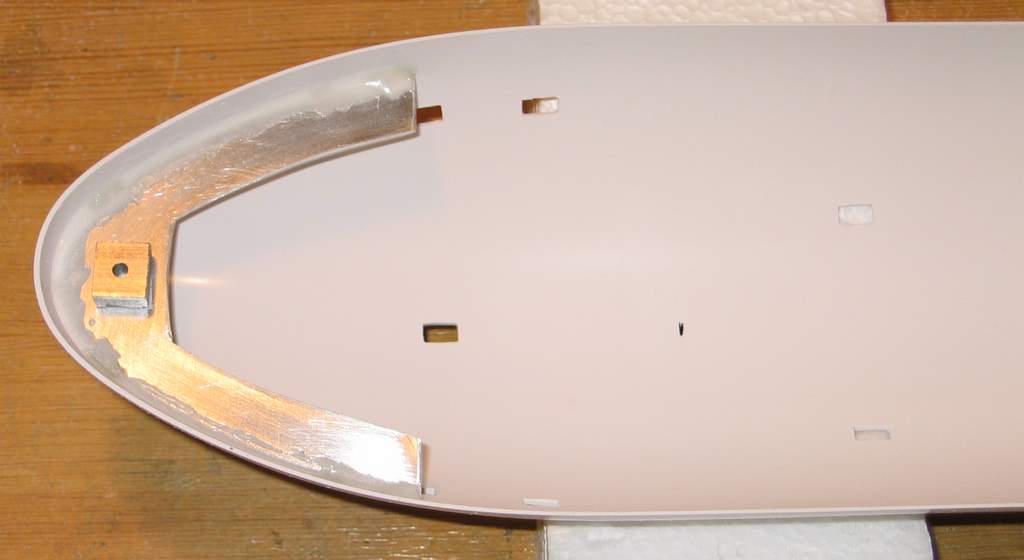

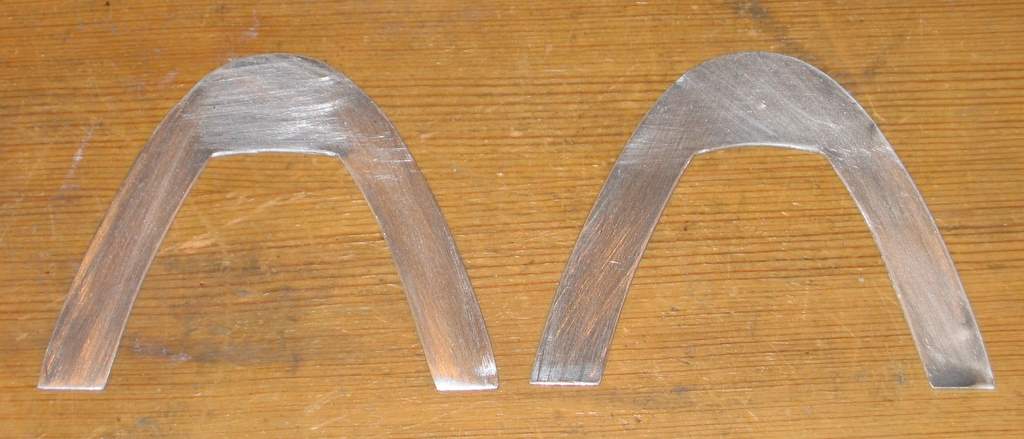

Now it is time to re-enforce the bottom hull. I have added the WTC holders and made an re-enforcement in the bow, so the two parts will fit better together.

Hull WTC holders Bow re-enforcement Bow re-enforcement

The little block with the hole in is a temporary block to make it easier to align the two hull parts.

Tail extension

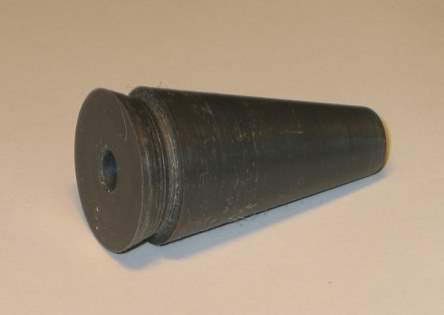

The hull tail is too short, so I am extending it with a piece of plastic which is turned to shape.

Tail extension

Details

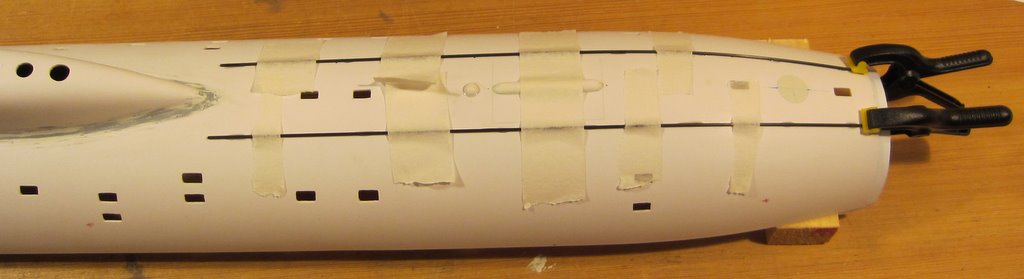

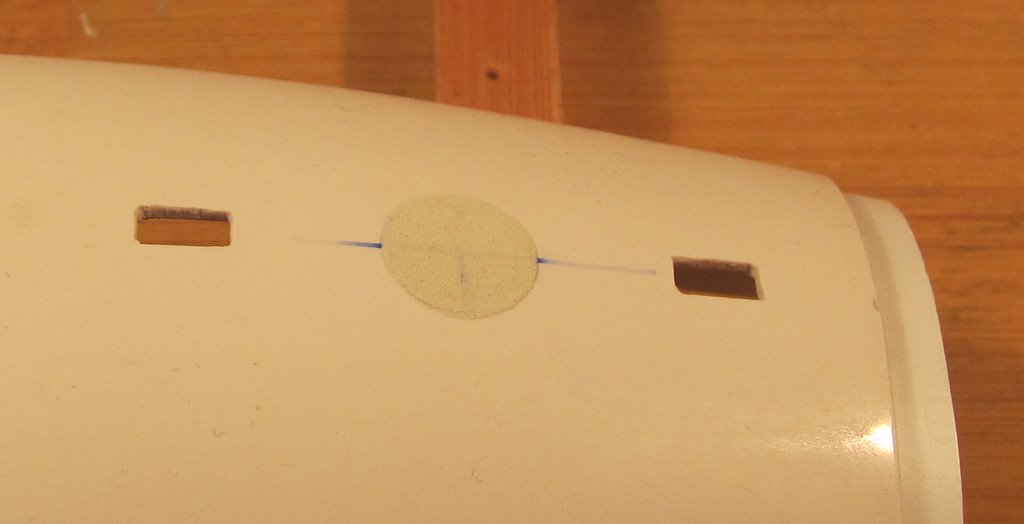

A few details has been added to the hull to make is look more realistic.

Cover

Painting

First the whole hull is sanded with grid 400 and then it is primed with an airbrush.

1. paint layer

Sub

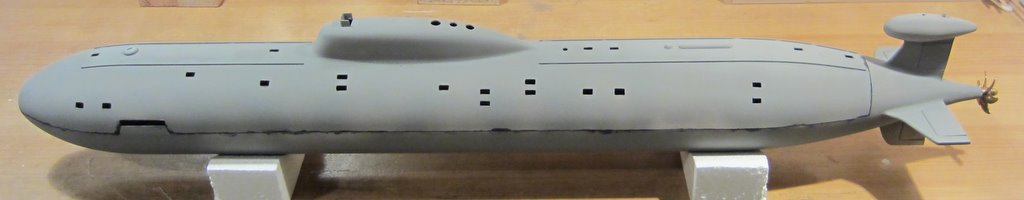

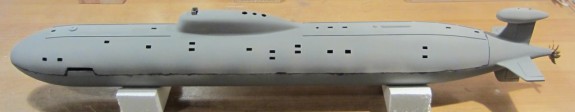

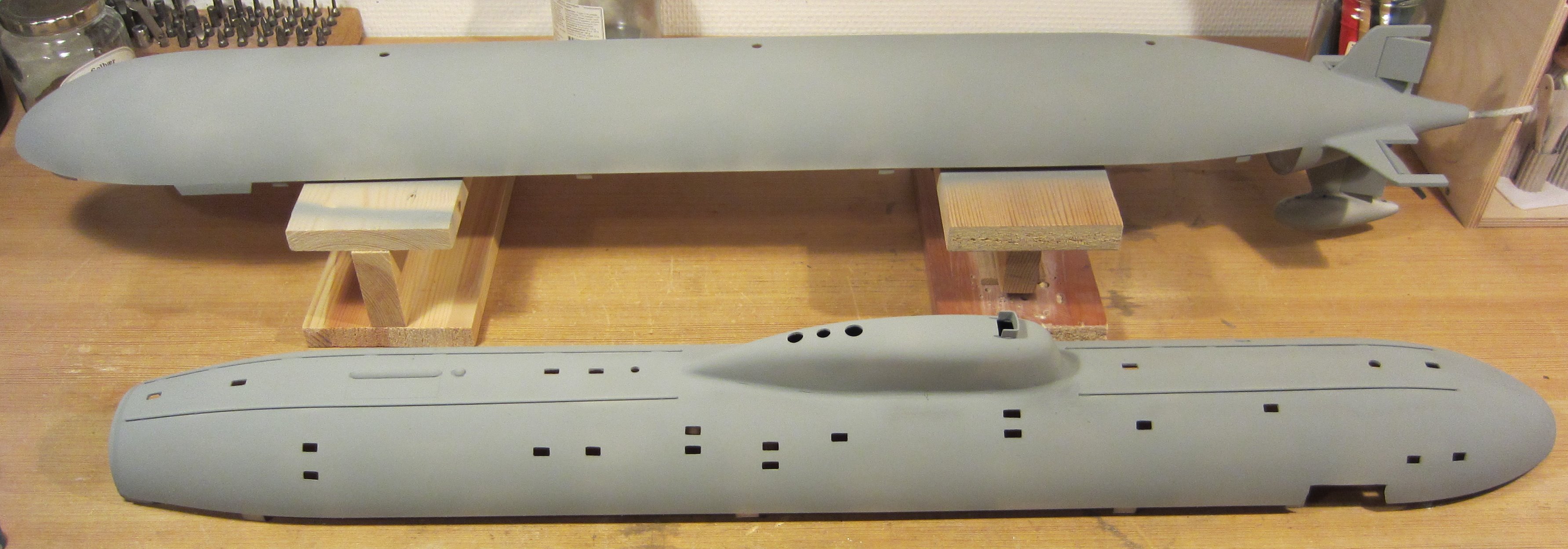

Then a temporary color while testing the sub.

Submarine painted

Tail painted Masts

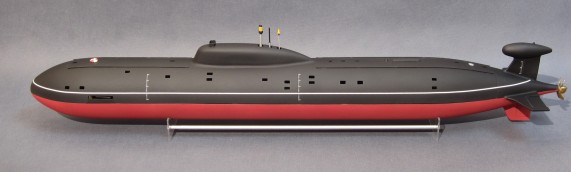

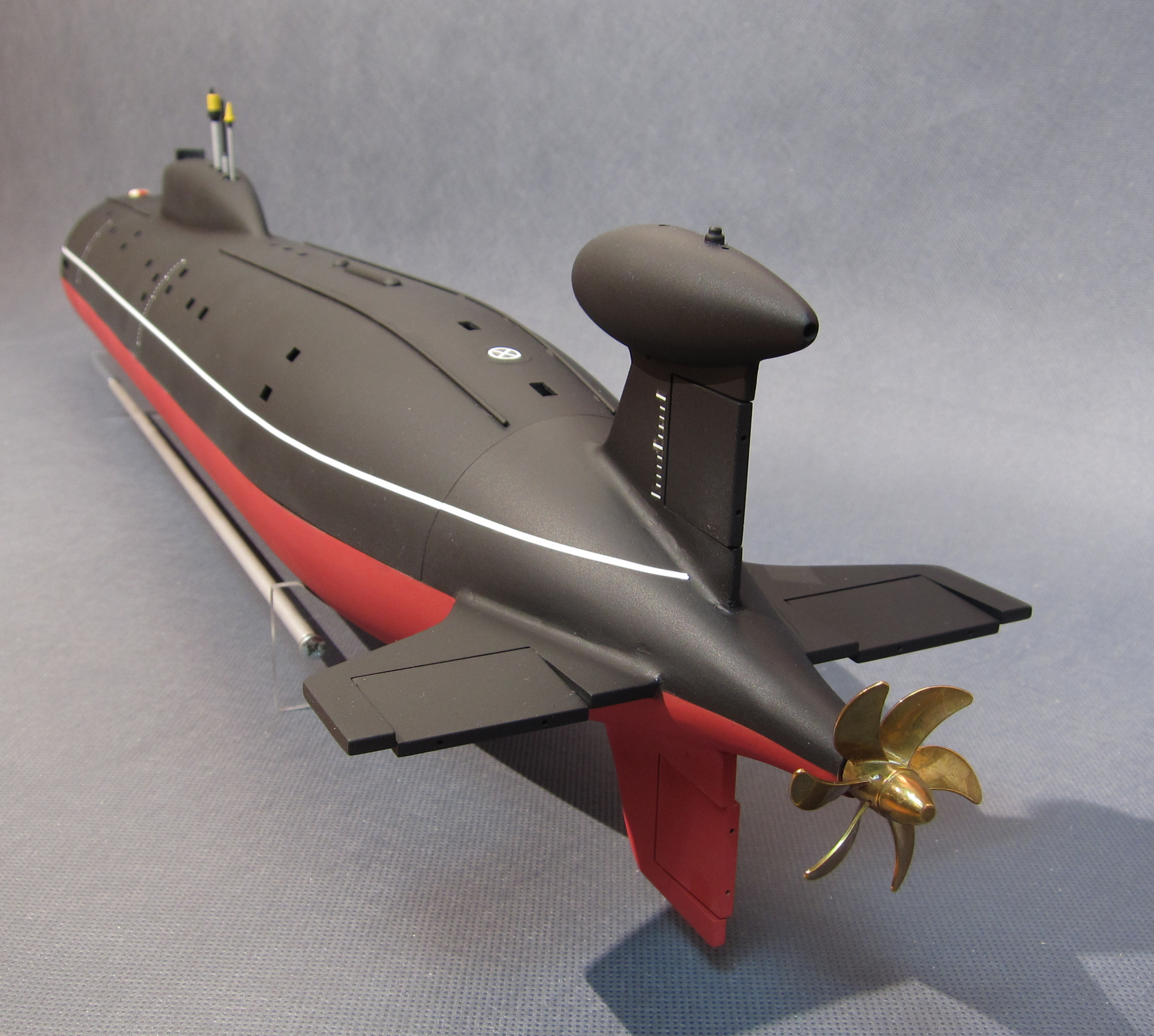

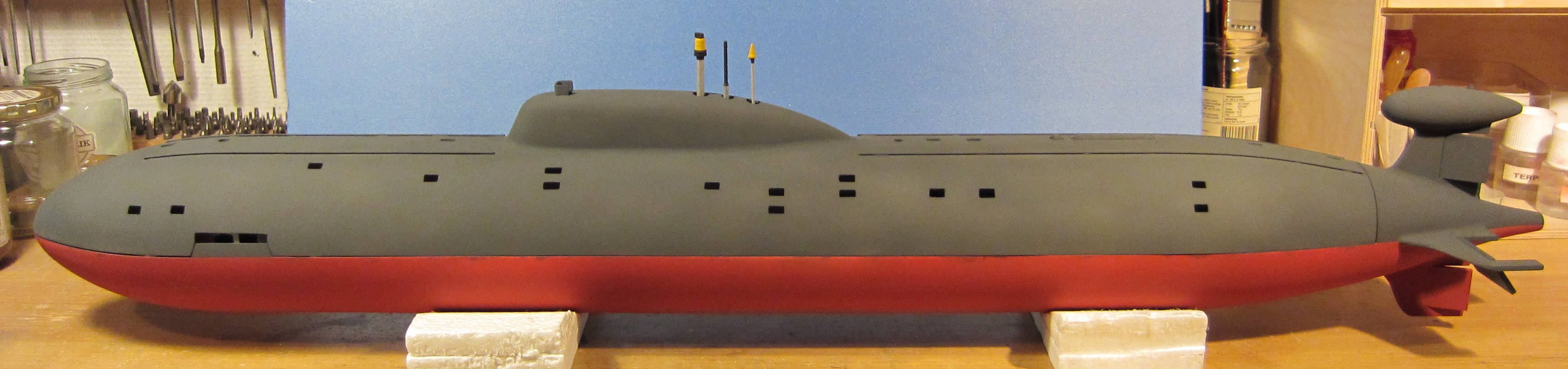

And now the final painting.

Final paint

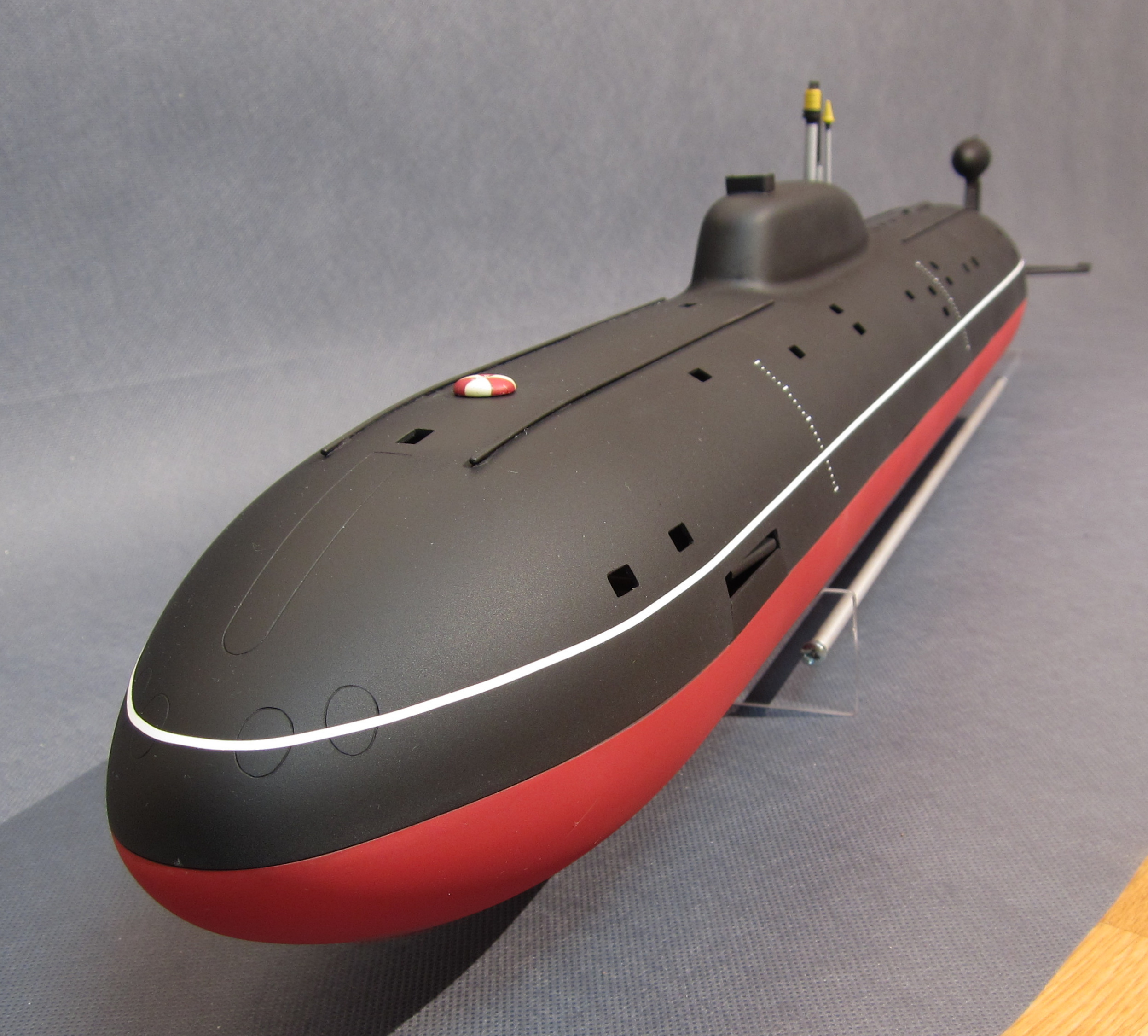

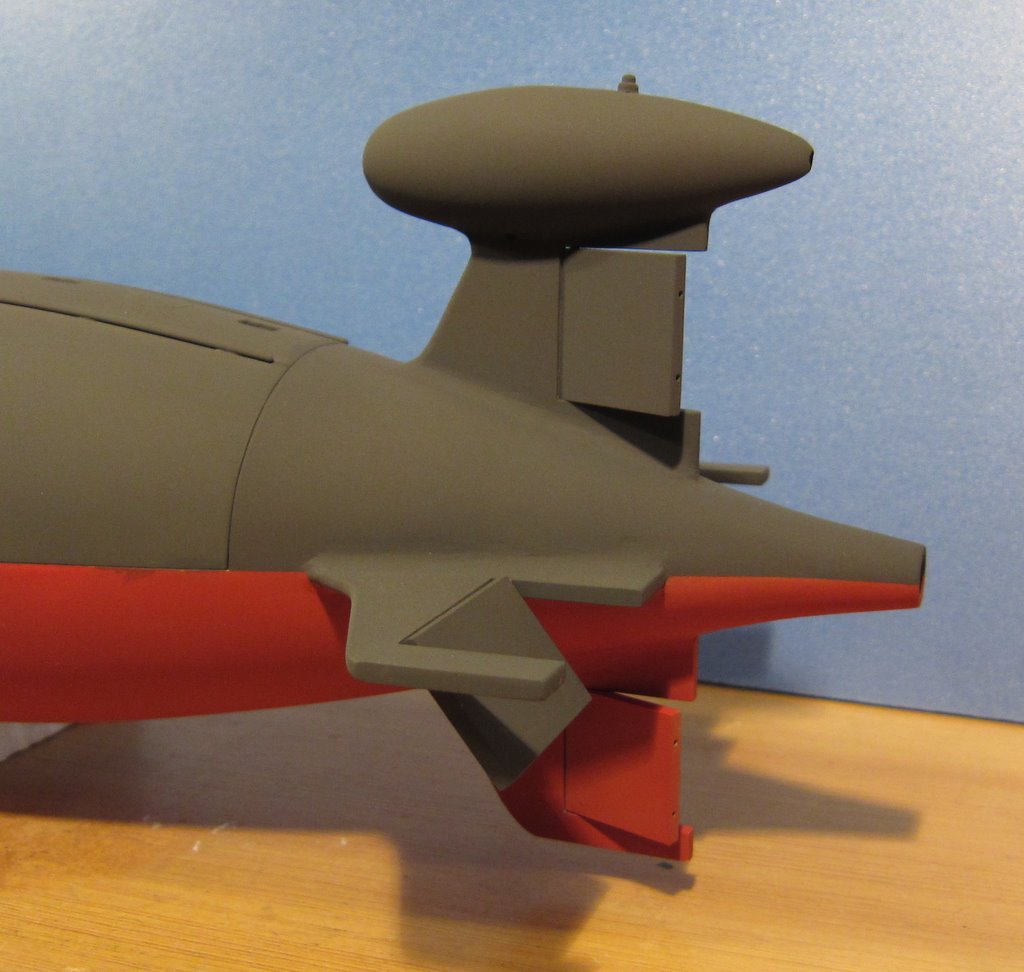

Front paint Tail paint

Sail

The delivered sail has the wrong shape: the top should be water level and it should be tighter.

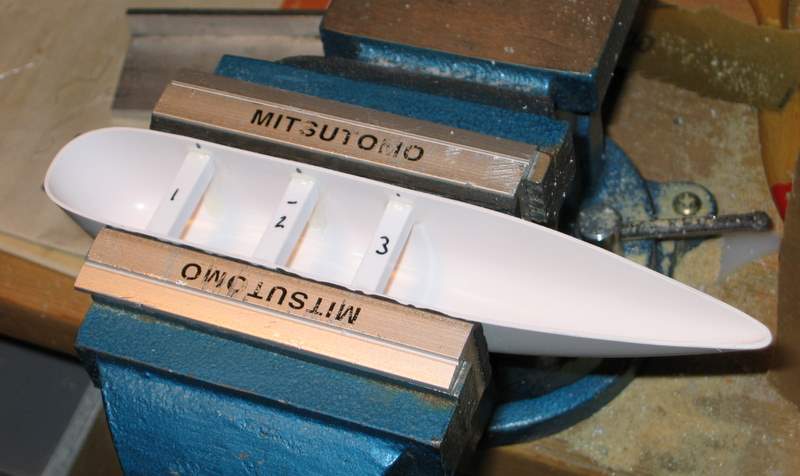

The water level is fixed by cutting the sail in a more flat line.The tighter is solved as showed on the picture:

Bottom of sail

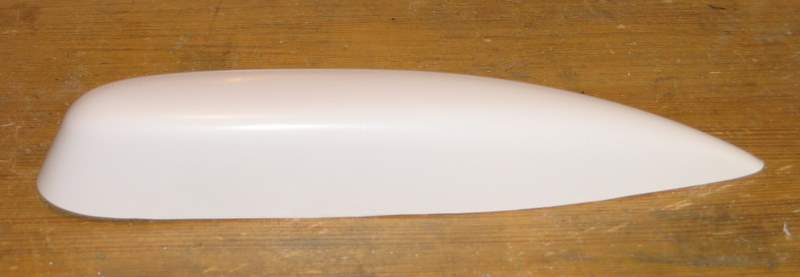

Here is the finished sail (without any holes):

Sail

Masts and periscopes

I have made some masts for the sail which should be able to be raised and lowered from the transmitter.

Masts

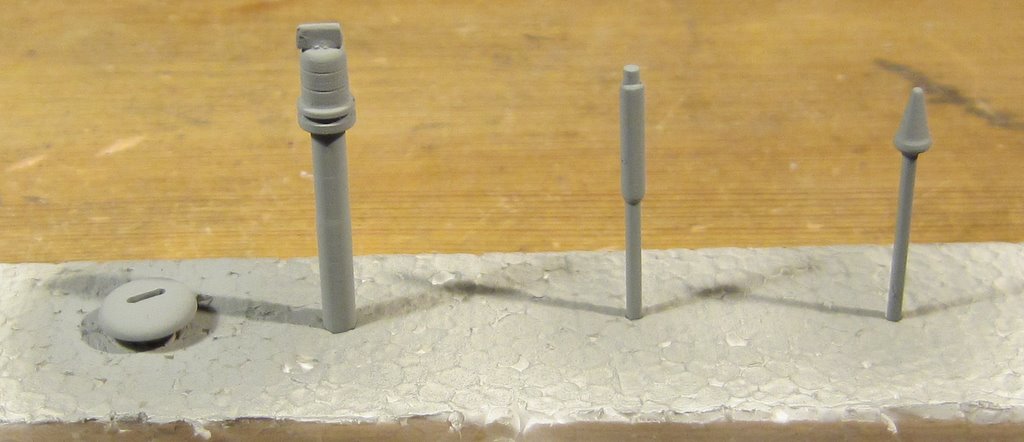

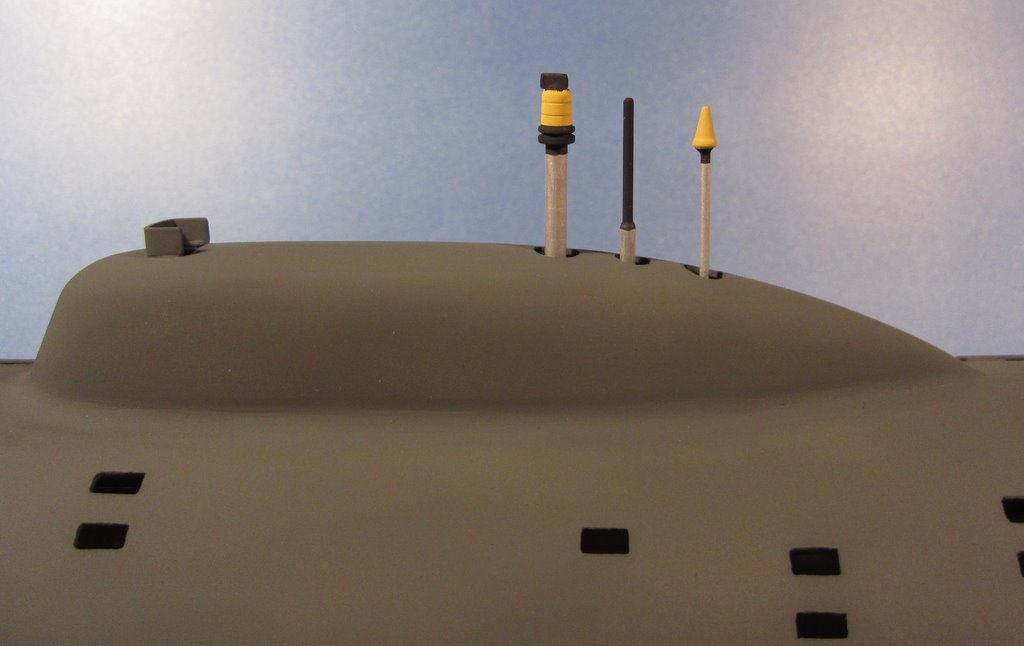

This is version 2 of the mast which has now been painted. The main hull screw has also been painted. The painted mast are shown with its holder.

Mast painted Mast painted

Rudders

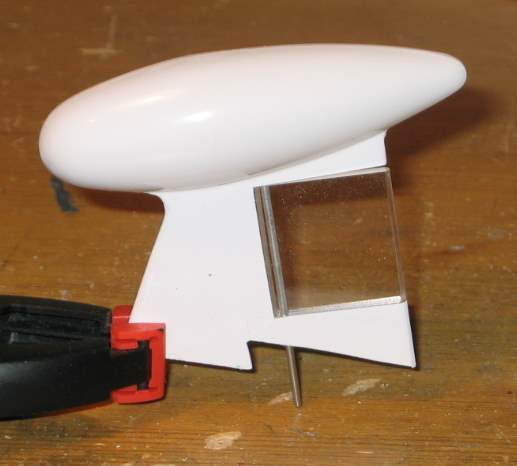

The radar pod is taken from the kit, but is modified as the shape and height is wrong. I have also added a rudder to the pod as on the real sub.

Radar pod rudder Rudder

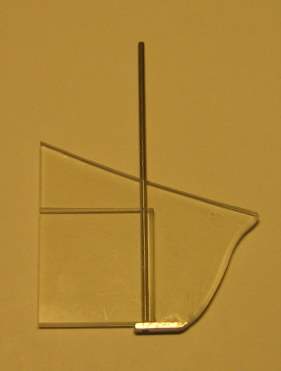

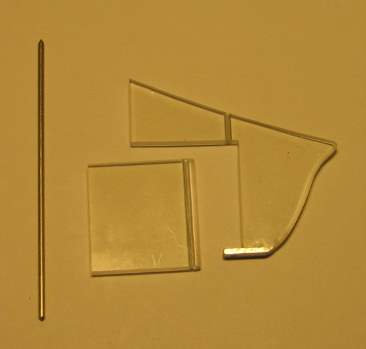

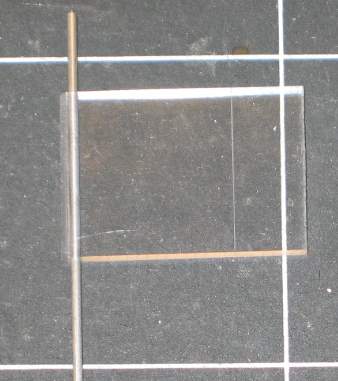

The lower rudder is made from scratch and has a small reenforcement made from aluminium.

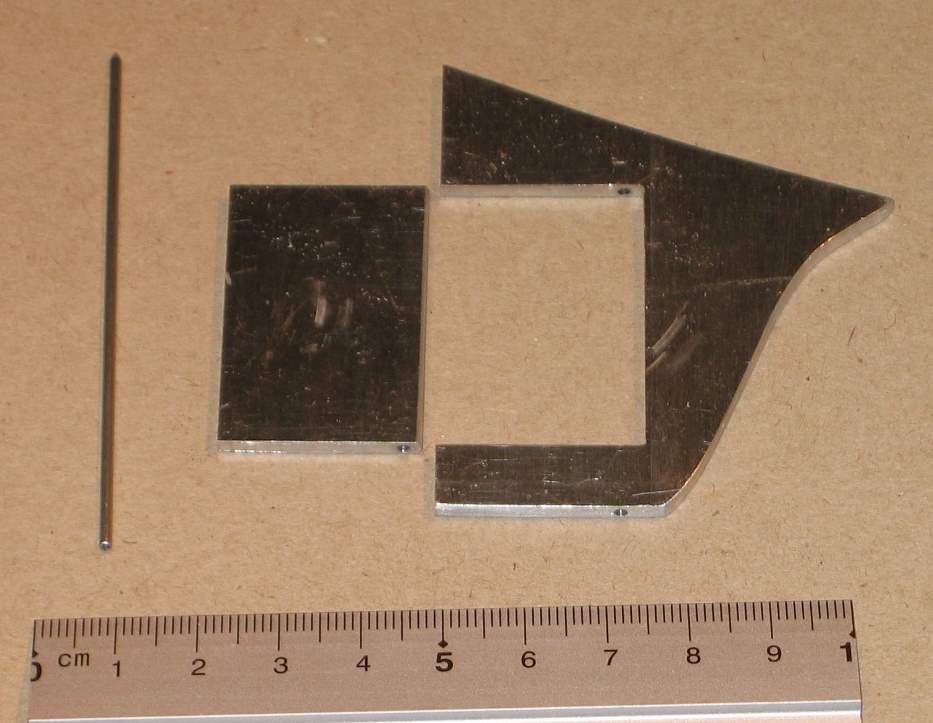

Lower rudder parts Lower rudder

Well, the first try was to make the rudders from Plexiglass (as above), but after at few tests it was clear that it was not strong enough. I therefore bought a sheet of 3mm thick Duraluminium, which is twice as strong as normal aluminium and 2/3 of steel.

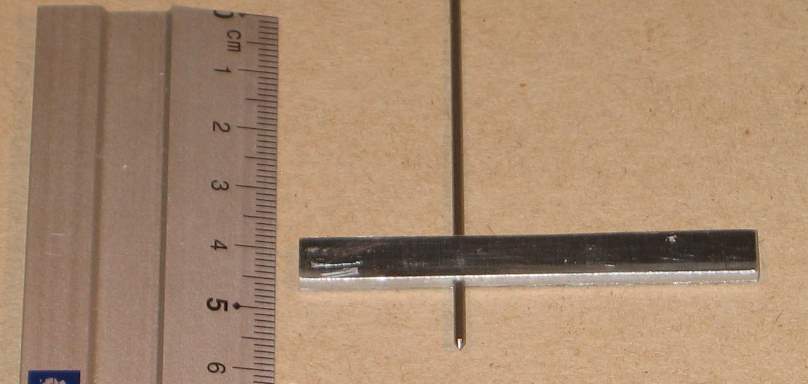

I made a little test piece of app. 6mm wide (and 3mm thick) and drilled a 1.6mm hole in it. I wasn't able to break it in my hands, so that should be strong enough!

Duraluminium test

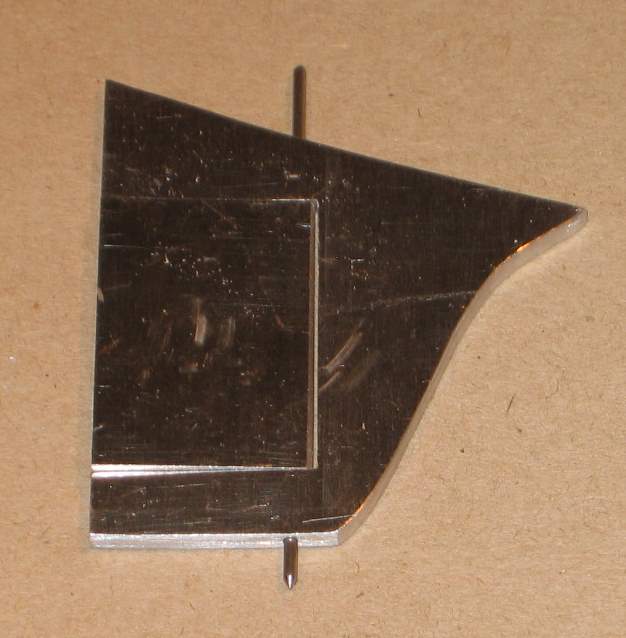

I then continued to make the rear dive planes out of aluminium with help from the mill and some handwork- they are strong. I have made the active part slidely larger then on the 'real' sub to make more effective in the water.

Rear dive plane Rear dive plane

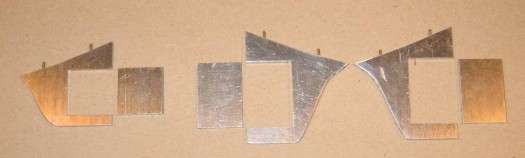

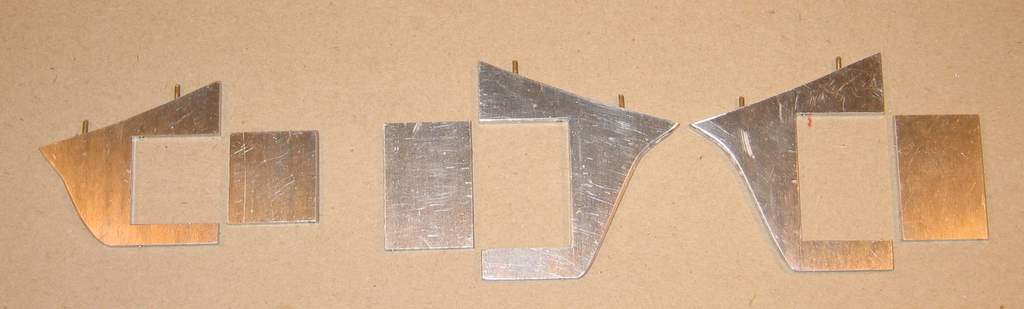

Here is a picture of all the finished rudders:

Rudders

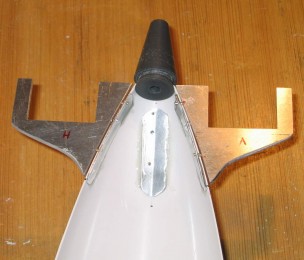

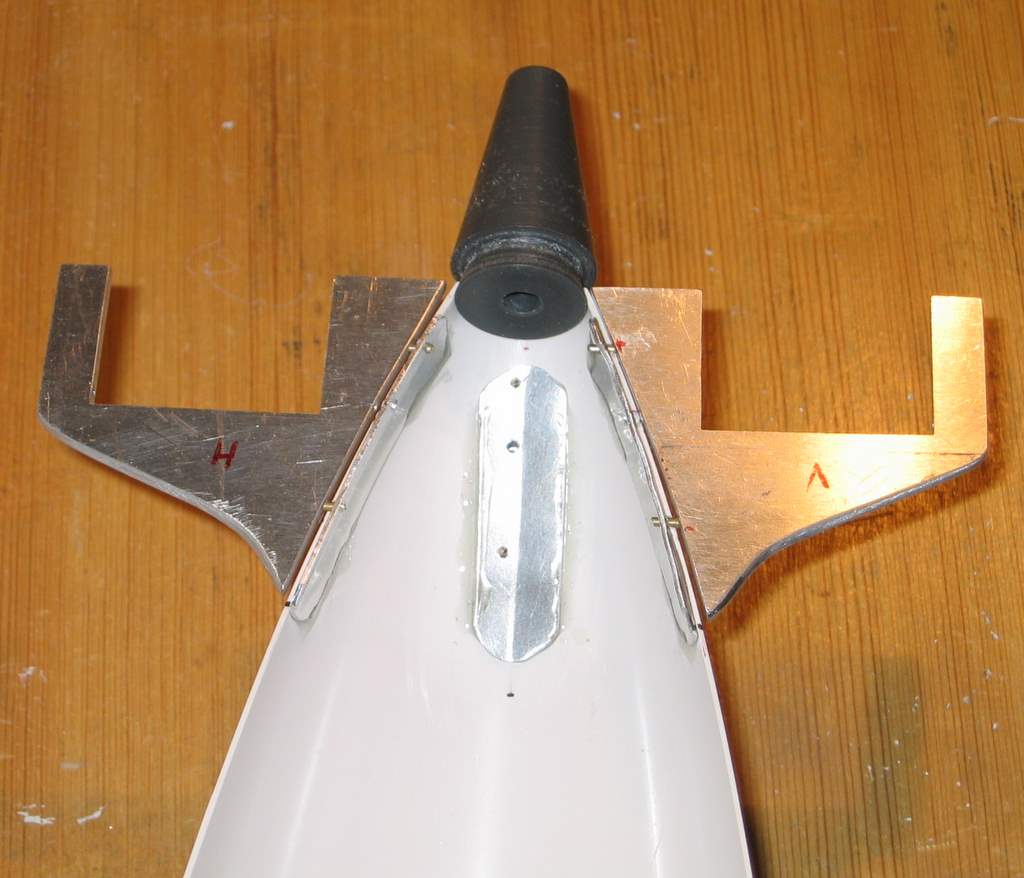

The rudders are fastened and re-enforced to the hull by use of aluminium sheets glued to the hull.

Rudder mount

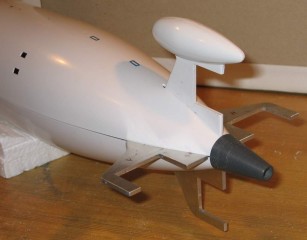

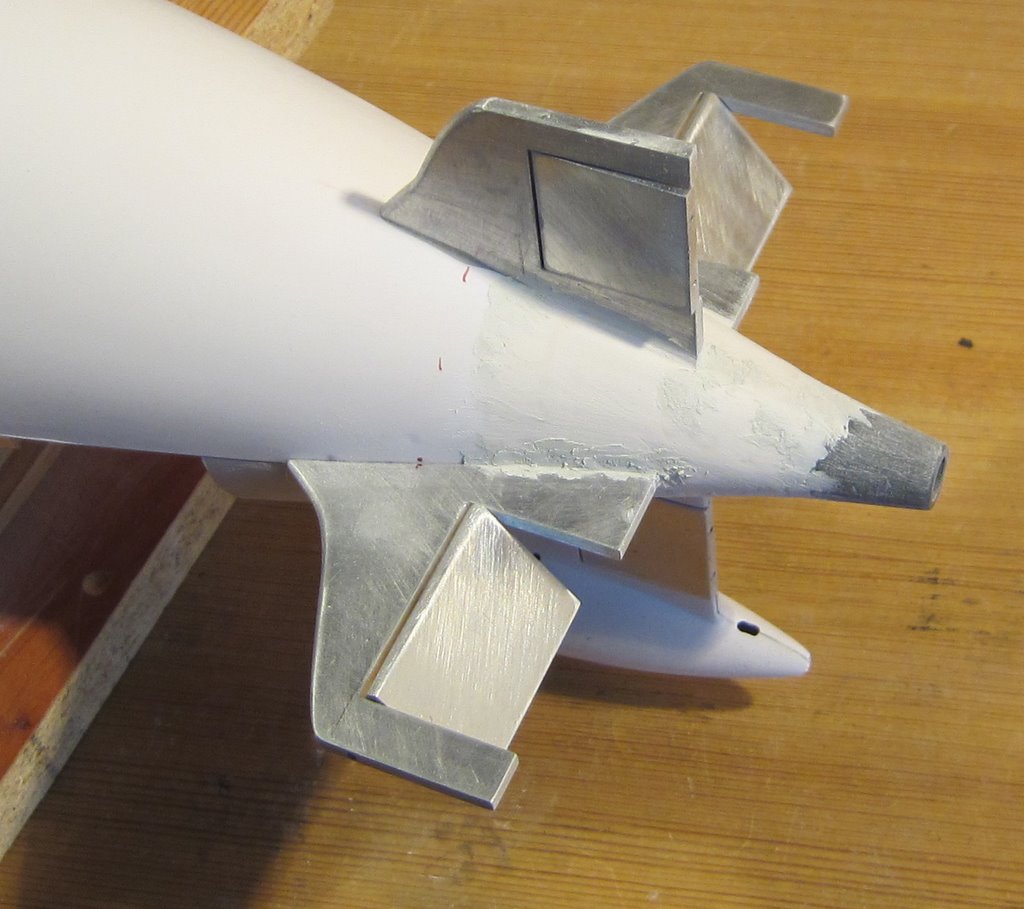

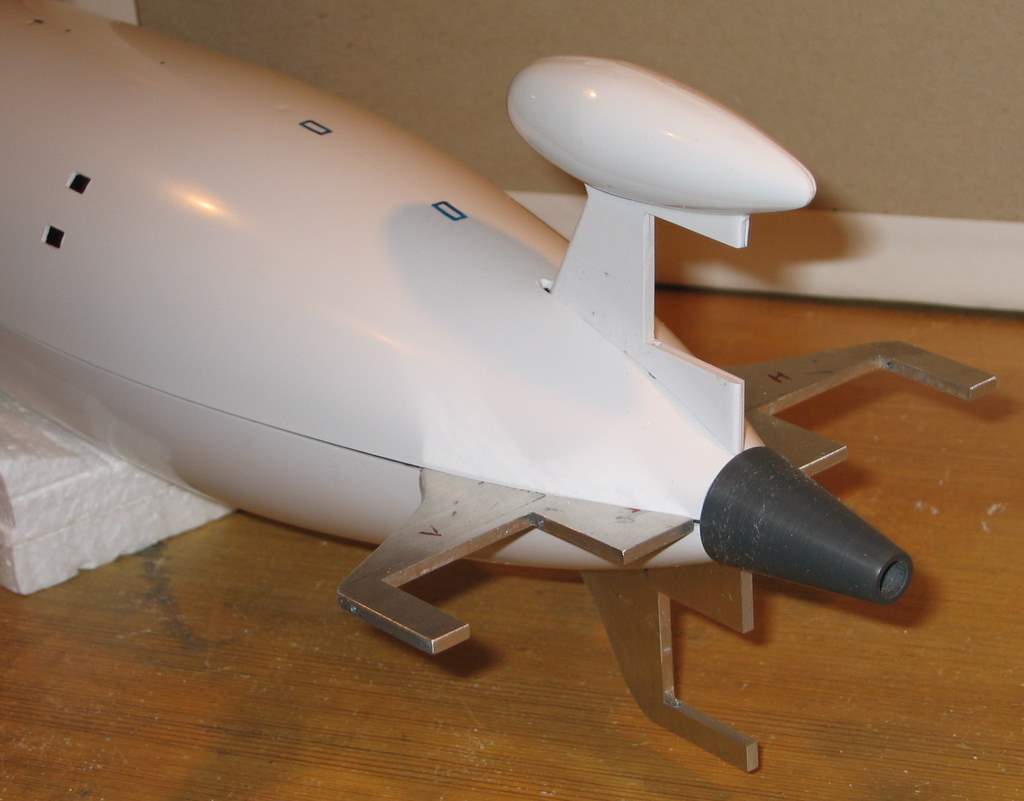

Here all the rudders and tail is test assembled.

Hull with rudders test Tail

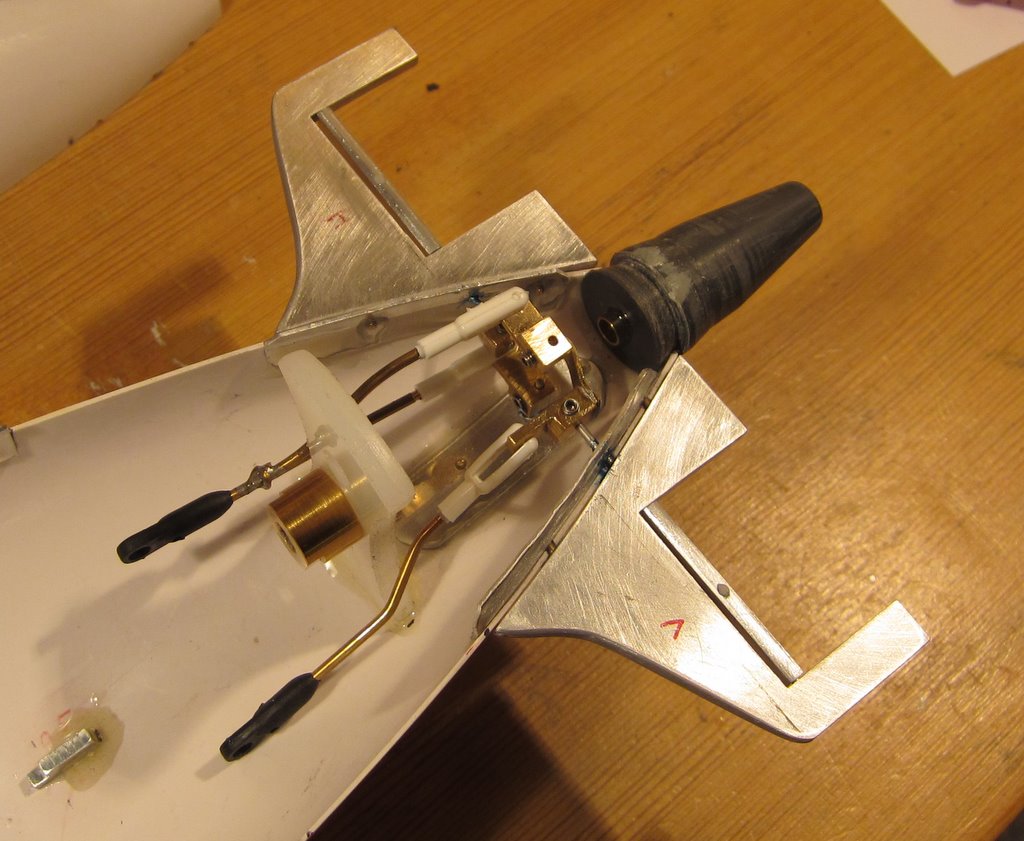

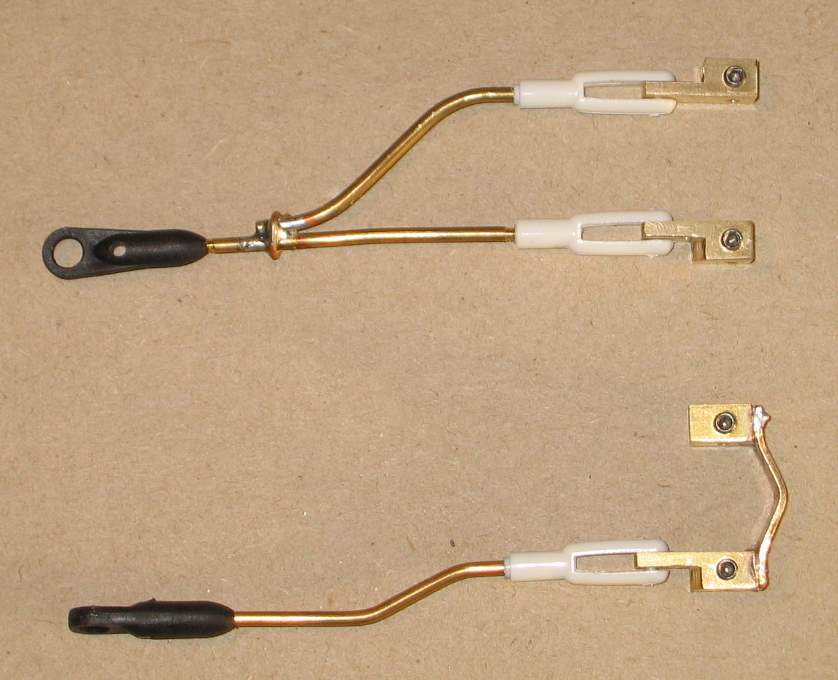

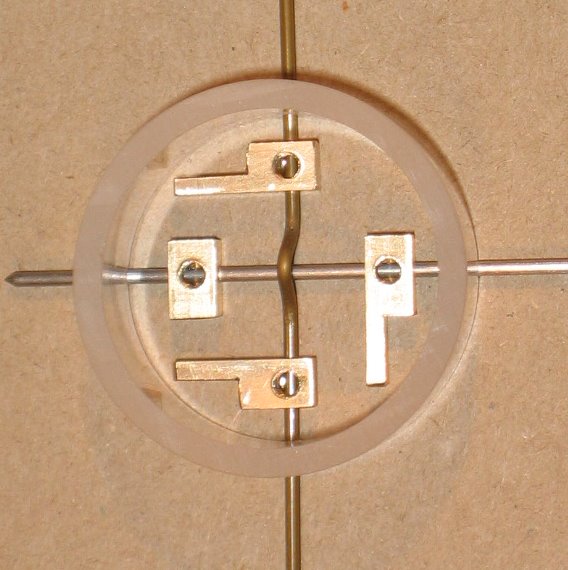

Here is the rudder control. The first image is how the attachment is made and the next it is actual rods.

Rudder control overview Control rods

Here the controls are mounted to the planes.

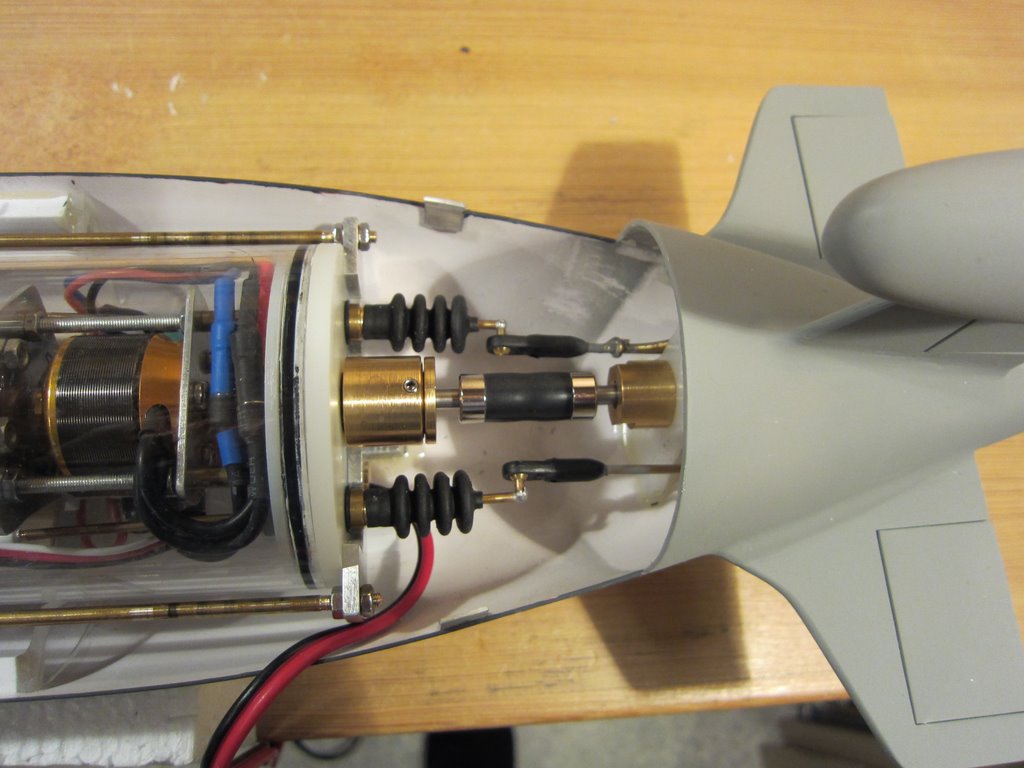

Rudder control Tail control

Dive planes

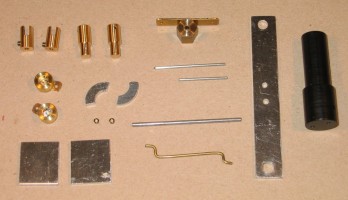

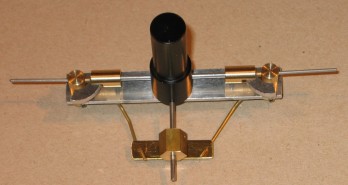

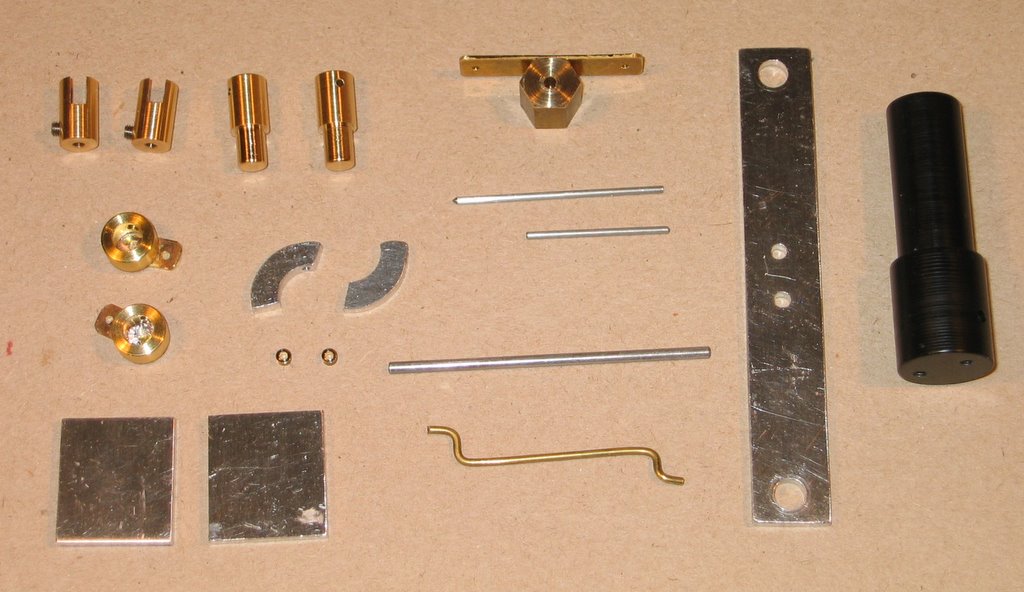

The front dive planes must be able to retract itself. Here is the mechanic for the movement. All parts are home made.

Dive plane retract overview

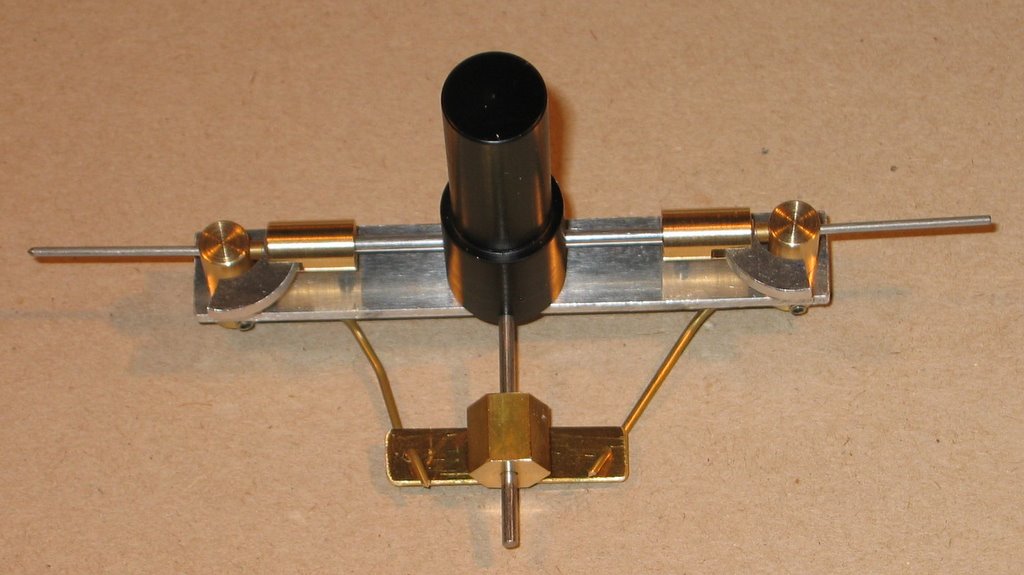

Dive plane retract assembled

Motor shaft

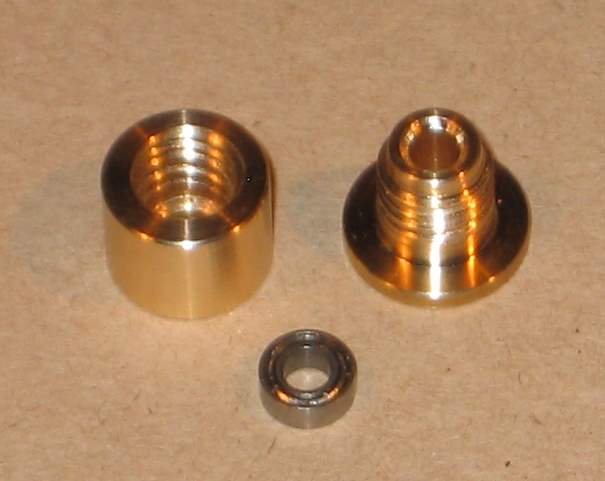

In order to make the shaft runs more smooth I have inserted a ball bearing between the WTC and the propel. The ball bearing is sealed to avoid any damage from the water.

Shart bearing parts Shart bearing
